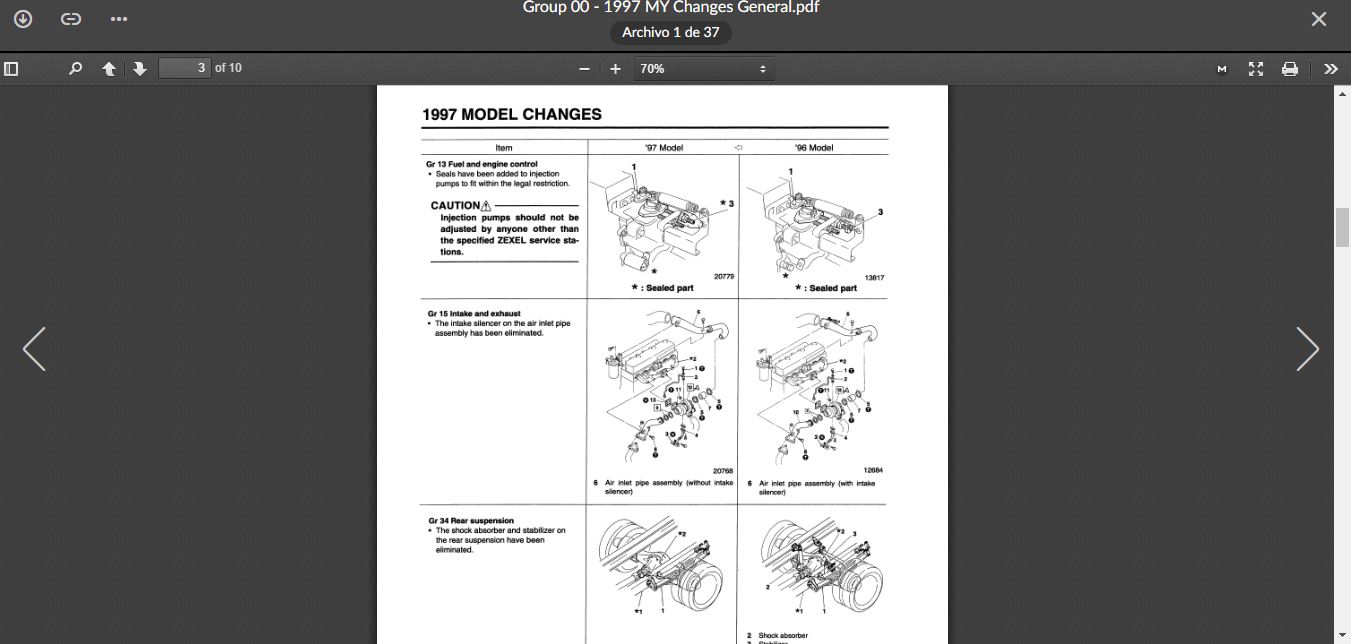

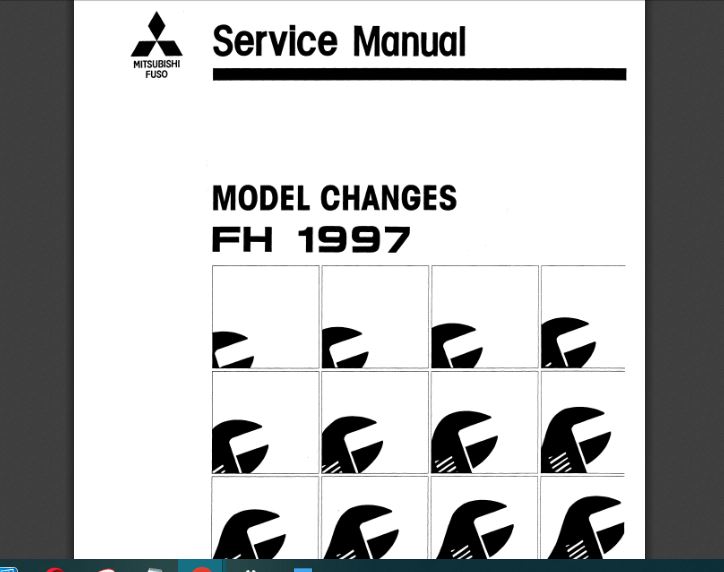

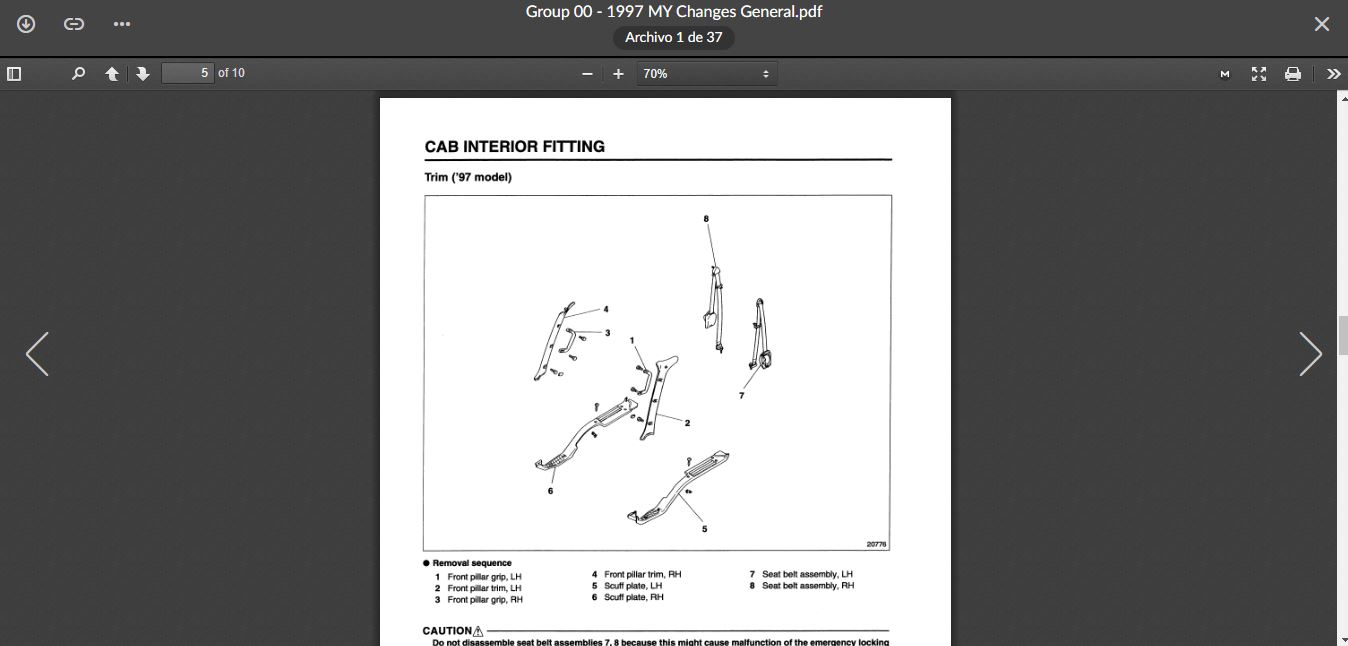

SERVICE MANUAL Fuso FH Series 1996-2001 - Image 2

SERVICE MANUAL Fuso FH Series 1996-2001

Description
SERVICE MANUAL Fuso FH Series 1996-2001

Aimed at: Workhops or Individuals.

Content: This electronic service manual (ESM), has been prepared with the aim of helping technical personnel to carry out more effective diagnostic, repair and maintenance work on these engines: Fully illustrated step-by-step instructions, with all their specifications.

(( Introduction / Engine Identification / Troubleshooting Symptoms / Complete Engine / Cylinder Block / Cylinder Head / Rocker Arms / Cam Followers / Valve Lifters / Fuel System / Fuel Injectors and Lines / Lubricating Oil System / Fuel System Cooling / Control Units / Air Intake System / Exhaust System / Compressed Air System / Electrical Equipment / Engine Test / Mounting Adaptations / Miscellaneous / Vehicle Brake System / Specifications / Etc. ))

Categories FUSO, TRUCK MANUALS Tags 1996-2001, FH, FUSO, Series

$28.00

Description
SERVICE MANUAL Fuso FH Series 1996-2001

Aimed at: Workhops or Individuals.

SERVICE MANUAL Fuso FH Series 1996-2001

Size: 65.3 MB
FILES: 1 – 37 PDF

–
-Service Manuals
–

You can carry it on your Smartphone, Tablet, Laptop or PC. to consult it at any time and place. It can also be printable in parts or entirely.

Free shipping”. Downloaded directly to your email. You can download it as many times as you want.
